JIHPUMP OEM peristaltic pump quick install panel type of flow rate less than 200ml/min

FOB Reference Price:Get Latest Price
US $30-40 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
JIHPUMP
Model Number:
101K
Structure:
Peristaltci pump
Usage:
Water
Application:
Metering
Power:
Electric
Fuel:
Electricity
Pressure:
Low Pressure
Flow rate:
less than 200ml/min
Drive:
stepper motor,DC motor,DC planetary motor, AC synchronous motor
Theory:
Rotary Pump
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
4000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
China port
Application
 Transport Detergent:Washing Machines,Dishwashers   Analytical Instruments:Analytical Instruments Injection
 Printing Equipment:Delivery Ink  Food Machinery:Beverage Machine
 Warewashing Equipment:Warewashing Equipment   Laundry Equipment:Laundry Equipment
 Car washing Equipment  Analytical Equipment



Feature

    1. Maximum flow rate up to 200ml/min
    2. Standard 4 rollers to get lower pulse rotor
    3. Tube wall 1mm and 1.6mm in optional
    4. Can Easily and quickly be installed into one or two channels.
    5. Can fitted with ordinary DC motor,DC planetary gear motor(quantitative)and stepper motor(Optional

        drive,variable flow),AC synchronous motor

Specification
Item101K/ZL(DC motor)101K/BT(stepper motor)101K/TB(AC motor)
Speed range5,30,100,150rpm0.1~300rpm5,30,50rpm
TubeSuit for tube wall 1mm and 1.6mm,ID 1.6~4mm. Tube size:2*1,3*1,4*1,14#(1.6*1.6),16#(3.2*1.6),25#(4.8*1.6)
Flow rate2-105ml/min2-200ml/min0.8-35ml/min
Rollers4 rollers
Power≤12W≤30W≤7W
Motor32 DC brush motor42 stepper motor50KTYZ AC synchronous motor
DriveFine tune the flow can equipped PWM speed control boardMust use driver contorl panelAC direct drive,can notchange speed
VoltageDC24V(12V in optional)DC24VAC220V50HZ(AC110V60HZ in optional)
Weight
MaterialCrust:PSU Roller:Nylon+MoS2
 Note Noise 55-80dB Noise ≤45dB Noise ≤45dB

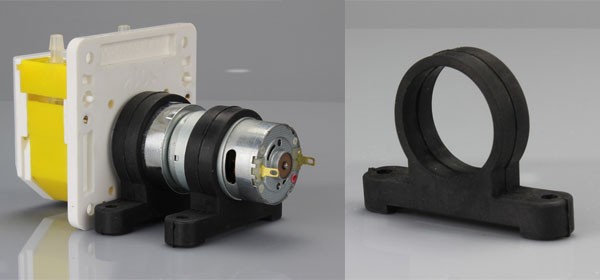

Rubber foot pad
Flow rate(Medium:water,ml/min)
Model101K/ZL-1(Signle channel)
101K/ZL-2(Dual channel)
101K/BT-1(Signle channel)
101K/BT-2(Dual channel)
101K/TB-1(Signle channel)
101K/TB-2(Dual channels)
MotorDC gear motorStepper motor AC synchronous motor
Tube50rpm100rpm150rpm0-300rpm5rpm10rpm30rpm50rpm
2×17.915.3240-28(0-200rpm) 0.81.64.87.9
3×11425420-42(0-200rpm)1.53914
4×11529450-55(0-200rpm)1.63.29.515
14#5.611180-34(0-300rpm)0.61.23.65.6
16#1835540-95(0-300rpm,only for signle channel)1.83.610.818
25#35701050-200(0-300rpm,only for signle channel)3.572135

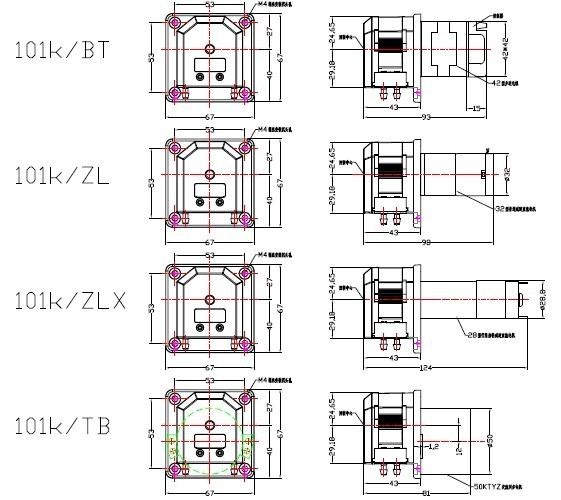

Dimension
