Quick Details

  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: JIHPUMP
  • Model Number: MN2
  • Theory: Rotary Pump
  • Structure: peristaltic pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: elctricity
  • Pressure: Low Pressure
  • Application: Metering
  • flow rate: less than 115ml/min
  • drive: stepper motor,DC motor,DC planetary motor

Packaging & Delivery

Packaging Details carton
Typical applicaton
Pump detergent:washing machine,dish-washing machine etc.Analytical instrument:sampling for analyzer
Printing equipmen:pump inkFood machinery:beverage machine etc.
Kitchen equipent    Laundry equipen
Car-washing equipment   Analytical equipment



Feature

1. Model # MN2 is JIHPUMP latest product in year 2015,integrated into JIHPUMP 10 years experiences of developing peristaltic pumps
2. Apply perfect industrial design ideas,adopt 3D modeling, ensure finished product high accuracy through digitalized verification
3. Full free of tools in mounting or dismounting pump head and changing tubing,to save both time and labour and operate easily
4. Adopt enhanced functional plastics,excellent anti-corrosion perfermance,completely conform to standards of CE,RoHS
5. Rollers are made of imported highly functional plastics processed by highly accurate CNC,3 rollers low pulse design
6. Pump head suitable for tubing of wall 1.6mm,max ID 4.8mm,with tower connectors on pump head itself
7. Equipped with DC gear motor,DC planetary gear motor(fixed flow rate) or stepper motor(variable flow rate),stepper motor can meet longlife and low noise operation requirement.
8. Pump cover have 3 colors for option(transparent,blue or orange,if none required,will deliver at random)

Model selection suggestion

1. For brush DC gear motor,please operate at intervals.
   For serious cost control,please select DC gear motor or DC planetary gear motor.
   For accurately controlled flow rate,demanding longer lifetime motor,please choose
   stepper motor.
2. For continuous long-term operation,please operate at low speed (within 150rpm).

MN2 can be equipped with DC gear motor,DC planetary gear motor or stepper motor.





MN2/ZL
(DC gear motor)


MN2/ZLX
(DC planetary gear motor)


MN2/BT
(stepper motor)


Parameter
Model #

MN2/ZL-B(DC motor,transparent cover)
MN2/ZL-H(DC motor,orange cover)
MN2/ZL-L(DC motor,blue cover)
MN2/ZLX-B(DC planetary motor,transparent cover)
MN2/ZLX-H(DC planetary motor,orange cover)
MN2/ZLX-L(DC planetary motor,blue cover)

MN2/BT-B(stepper motor,transparent cover)
MN2/BT-H(stepper motor,orange cover)
MN2/BT-L(stepper motor,blue cover)
Rotation speed Standing DC gear motor:
12V:100,200r
24V:5,60,100,150,200r
Standing DC planetary gear motor:24V:100,150,200,250r
0.1~200r
TubingTubing wall 1.6mm peristaltic pump tubing
Tubing 16# for standard (14#,25# for option)
Flow rate6-137ml/min≤115ml/min
Roller 3 rollers
Motor power 24W 48W
Motor model 28 group DC gear motor

Longer lifetime & low noise DC planetary motor for option
42 type stepper motor,needing controller to operate
ControllerDC speed-governing panel  for option3 types of controller,click to see details
Voltage24V (6V,12V for option)supply voltage 6~36V
Pump material Pump body:POM, Pump cover:PC, Roller:POM
Weight MN2/ZLX:176g MN2/ZL:228gMN2/BT:335g

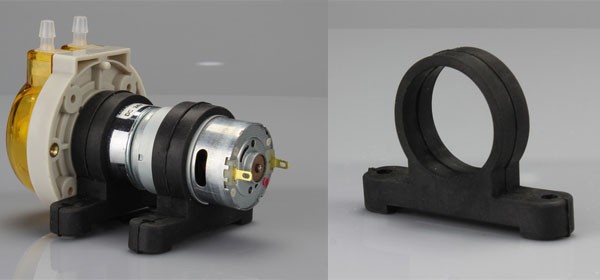

Rubber foot pad
Flow rate (ml/min,medium:water)

Tubing #

14# (optional)

16# (standard)

25# (optional)

MN2/ZL flow rate (DC gear motor)

50rpm

6

19

34

100rpm

11

38

68

150rpm

16

57

102

200rpm

22

76

137

MN2/ZLX flow rate (DC planetary gear motor)

65rpm

6

21

37

100rpm

9.5

32

57.5

200rpm

19

64

115

MN2/BT flow rate (long life-time stepper motor)

200rpm

19

65

115

Remark DC gear motor rotation speed has some errors,along with changes of actual output rotation speed,actual flow rate will change. Please take a full consideration of this factor when selecting models.

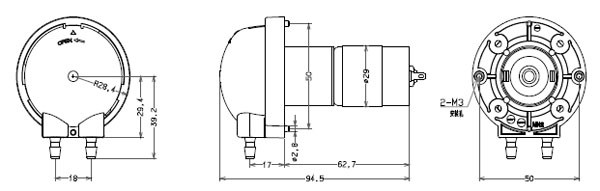

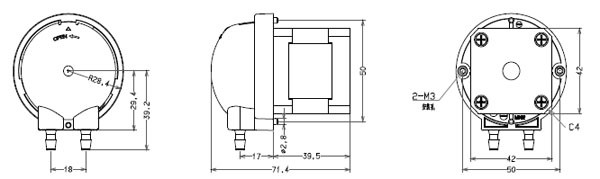

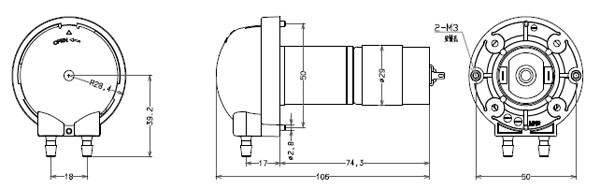

Dimension  (Model:MN1/BT)

Dimension  (Model:MN1/ZL)

Dimension  (Model:MN1/ZLX)
