OEM peristaltic dosing pump of flow rate 750ml/min

FOB Reference Price:Get Latest Price
US $45-75 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
JIHPUMP
Model Number:
204K
Theory:
Rotary Pump
Structure:
Peristaltic pump
Usage:
Beverage Machine, Delivery Ink, Washing Machines,Dishwashers
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electicity
Pressure:
Low Pressure
Application:
Beverage Machine, Delivery Ink, Washing Machines,Dishwashers
Flow rate:
less than 750ml/min
Drive:
stepper motor,DC motor,DC planetary motor,AC synchronous motor
Material:
Housing material:PC & PA66 Roller material:PA66 & MoS2
Voltage:
12V/24V
Tubing:
25#,17#,15#, 24#
Warranty:
One Year
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton
Port
China port
Lead Time :
2 days after receiving the payment
Functions

1.Transport Detergent:Washing Machines,Dishwashers;

 2.Analytical Instruments:Analytical Instruments Injection;

 3.Printing Equipment:Delivery Ink;

 4.Food Machinery:Beverage Machine;

 5.Warewashing Equipment;

 6.Laundry Equipment.



Features


Pump cover easy to dismount,convenient to replace tubing
The stepper motor has longer life and lower noise.

Model selection suggestion

For operation at intervals,no requirement for flow rate accuracy,serious cost control,please select DC gear motor or AC synchronous motor.

For accurately controlled flow rate,longer lifetime motor demanded,please choose stepper motor.

For continuous long-term

Parameter
Item204K/ZLX-B16
204K/ZLX-L16
204K/ZLX-B24
204K/ZLX-L24
204K/ZL-B16
204K/ZL-L16
204K/ZL-B24
204K/ZL-L24
204K/BT-B16
204K/BT-L16
204K/BT-B24
204K/BT-L24
204K/TB-B16
204K/TB-L16
204K/TB-B24
204K/TB-L24
DescriptionB is for transparent pump cover,L is for blue pump cover
16 is for tube wall 1.6mm,24 is for wall 2.4mm
Speed  150,300r160r,300r0.1-300r
Picture(without mounting panel)20120731144558_9687.jpg20120731144619_2343.jpg20120731144632_8750.jpg20120731144647_9843.jpg
Picture(with stainless steel mounting panel) 20120731144715_0000.jpg20120731144702_6250.jpg20120731144728_7187.jpg20120731144758_1250.jpg
Tubing25#(ID 4.8×wall 1.6mm),17#(ID 6.4×wall 1.6mm),15#(ID 4.8×wall 2.4mm), 24#(ID 6.4× wall 2.4mm)
Flow rate109-750ml/min38~709ml/min≤750ml/min3.75~210ml/min
Roller2 working rollers & 2 guiding rollers
Power  6-16W6-16W25-50W14W
Motor DC planetary gear motor DC gear motor 57 type stepper motor(It canAC synchronous
Drive It can be equipped with controller to fine tune speed  Any JIHPUMP controller is in optionalIt can operate when accessed to electric circuit.
Voltage24V (12V optional)6~36V220V50HZ(110V 60HZ optional)
Weight499g734g899g729g











Flow rate(ml/min,medium:Water
MotorDC planetary motor DC gear motor Stepper motorSynchronous motor
Motor speed150-300501201603000-3005103060100
15#(4.8×9.6)225-42582.51982194950-4256123672165
25#(4.8×8)240-495922202453980-4956.5133777183
17#(6.4×9.6)360-7501303124156850-7509.51957115260
24#(6.4×11.2)336-7001152773767090-700122468140230

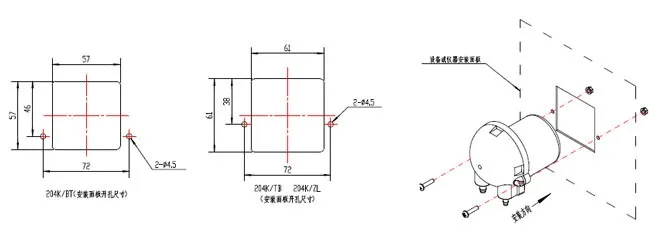

Dimension  204K.pngDimension of installation panel 20120719090217_0066.jpg
